Miyota 9000 Series: Unsung Hero of Independent Watches

Let's talk about the engine. Not the flashy case or the perfect dial, but the little metal heart that makes it all tick. For years, the Swiss held a monopoly on premium, high-beat movements. But that wall has been crumbling, thanks in large part to Miyota.

Specifically, we're talking about their 9000 series. These aren't your basic, entry-level calibers. This is Miyota's premium automatic line, and it has completely changed the game for independent and microbrand watches. We're going to look at three key players that show just how versatile this platform is.

This series delivers features once reserved for much more expensive watches. We're talking about smooth 4Hz sweeps, slim profiles, and even complex complications. It's time to give these movements the respect they deserve.

Check out Project Butters Jump-Hour by Red 5 Watchworks. A Watch using the 9000 series with a custom module.

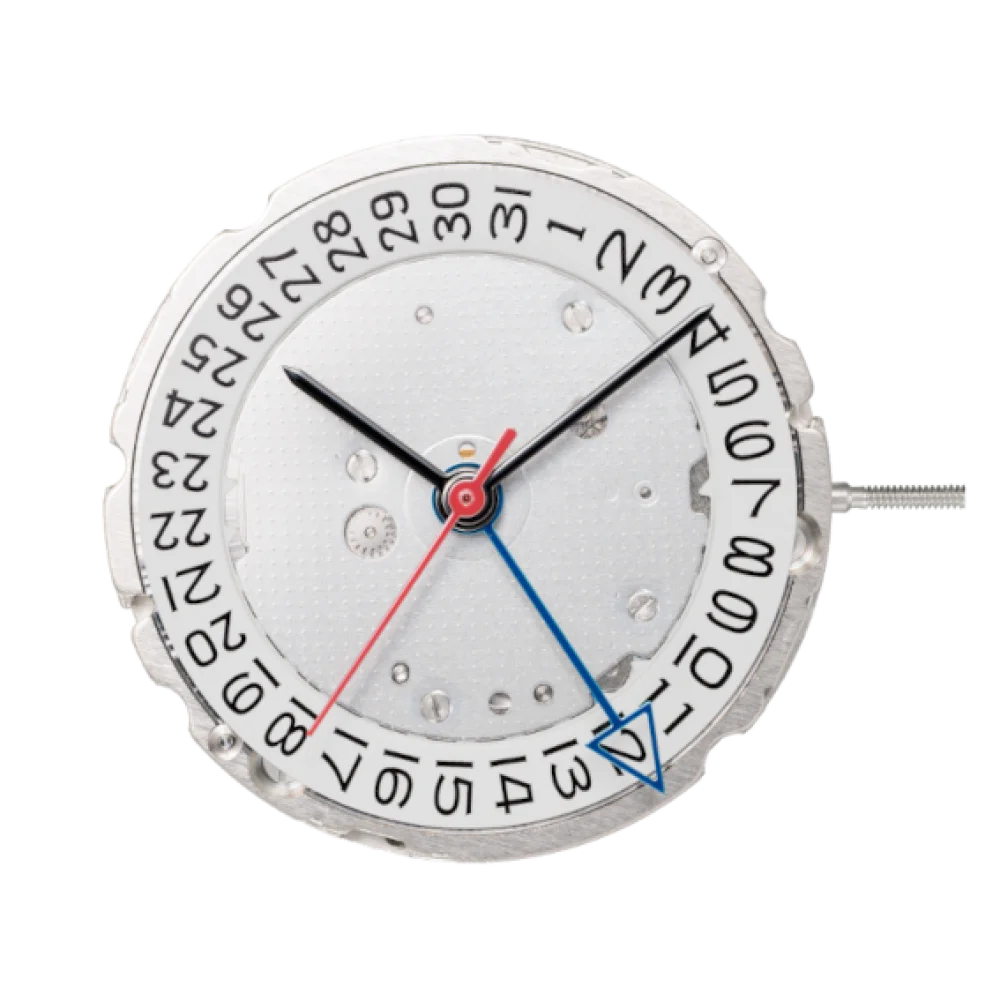

Miyota 9075: The "True" GMT for the People

For a long time, an affordable "true" GMT was a watch collector's unicorn. A true, or "flyer," GMT allows you to independently adjust the local hour hand. This is the functionality you actually want when you're traveling across time zones.

Most affordable GMTs were "caller" GMTs, where you adjust the 24-hour hand instead. It works, but it's less intuitive for the wearer. The Miyota 9075 changed all that by making a flyer GMT movement accessible to almost any brand.

Core Performance

Under the hood, the 9075 is built on the proven 9000 series architecture. You get that smooth 28,800 vibrations per hour (vph) sweep. That 4Hz frequency is the modern standard for a reason, delivering a more fluid seconds hand motion.

It also features hacking seconds and hand-winding, which are non-negotiable for most enthusiasts. The power reserve is approximately 42 hours. This is enough to get you through a weekend off the wrist, which is perfectly practical.

The movement is a bit thicker than its time-only siblings at 4.92mm. This is completely understandable, given the extra mechanics required for the GMT function. It's still a very manageable height for a sport or travel watch.

Accuracy and Build

Miyota rates the accuracy at -10 to +30 seconds per day. While that might not impress chronometer snobs, it's a conservative and realistic figure. Most watchmakers can easily regulate a 9075 to run much tighter than its factory spec.

It runs on 24 jewels, ensuring low friction at critical pivot points. This contributes to the movement's reliability and service life. For any brand looking to build a robust, functional, and affordable travel watch, the 9075 became the obvious choice overnight.

Reference	Miyota 9075
Type	Automatic, "True" GMT
Ligne	11 1/2'''
Height	4.92mm
Jewels	24
Frequency	28,800 vph (4Hz)
Power Reserve	Approx. 42 hours
Accuracy	-10 to +30 sec/day
Functions	Hacking, Hand-winding, Independent Hour Hand

View on Brand

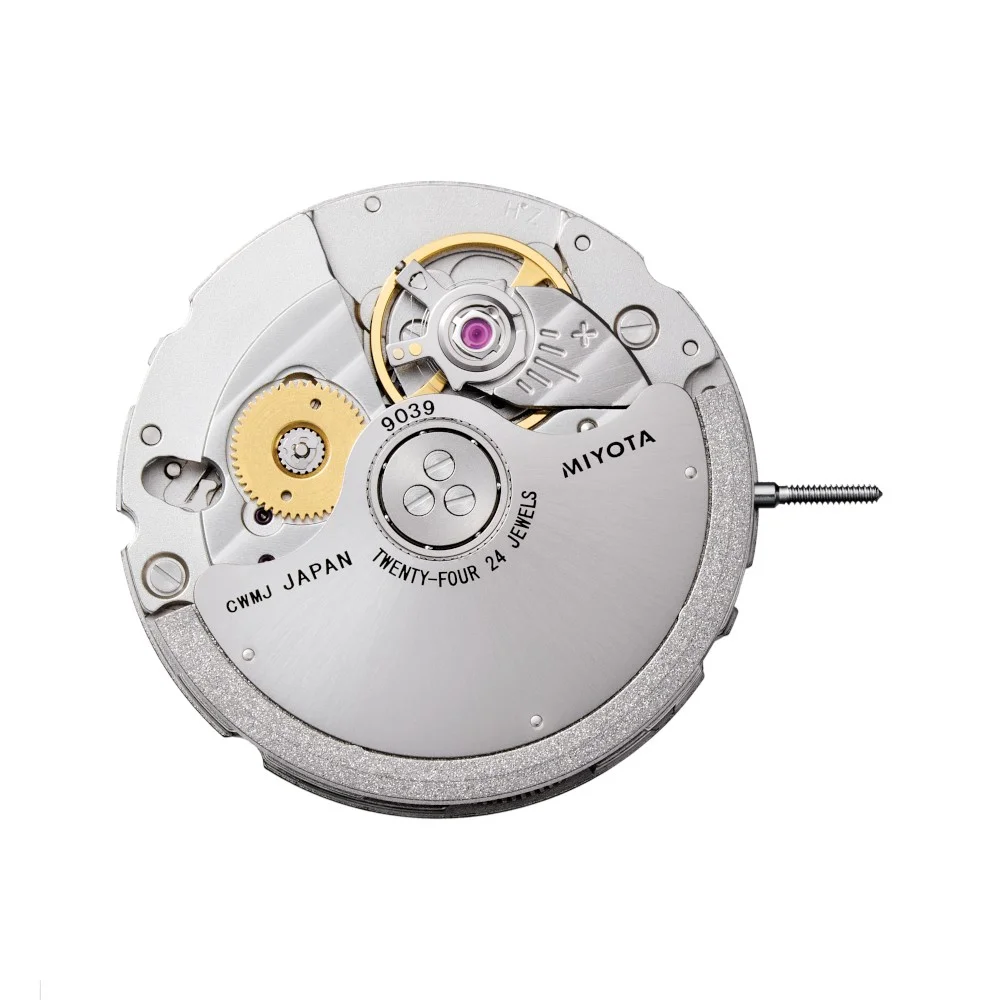

Miyota 9039: The Slim, No-Date Workhorse

Now we move to the other end of the spectrum: pure, simple, time-only elegance. The Miyota 9039 is the movement for designers who obsess over clean dials and thin cases. Its defining feature is what it lacks: a date complication.

This is a bigger deal than it sounds. By removing the date wheel, Miyota eliminated the "ghost date" position on the crown. It creates a more refined user experience and speaks to a purposeful design philosophy.

The Pursuit of Thinness

The real magic of the 9039 is its height, or lack thereof. At just 3.90mm thick, it is properly svelte. This allows brands to create dress watches and everyday pieces that slide effortlessly under a cuff.

Despite its slim profile, it doesn't sacrifice performance. You still get the full premium package. The 28,800 vph frequency, 42-hour power reserve, and 24 jewels are all present and accounted for.

This is what makes the 9000 series so impressive. It's a modular platform that can be adapted for different purposes without compromising the core mechanics. Thinness is achieved through smart engineering, not by cutting corners on performance.

A Canvas for Design

The 9039 is a gift to watch designers. The lack of a date window frees up the entire dial. This allows for perfect symmetry and minimalist aesthetics that just aren't possible with a date complication.

It’s the engine behind some of the best-looking microbrand watches of the last few years. When you see a beautifully balanced, time-only watch with a slim case and a high-beat sweep, there's a good chance a Miyota 9039 is inside. It's the ultimate purist's choice.

Reference	Miyota 9039
Type	Automatic, No-Date
Ligne	11 1/2'''
Height	3.90mm
Jewels	24
Frequency	28,800 vph (4Hz)
Power Reserve	Approx. 42 hours
Accuracy	-10 to +30 sec/day
Functions	Hacking, Hand-winding, 3 Hands

View on Brand

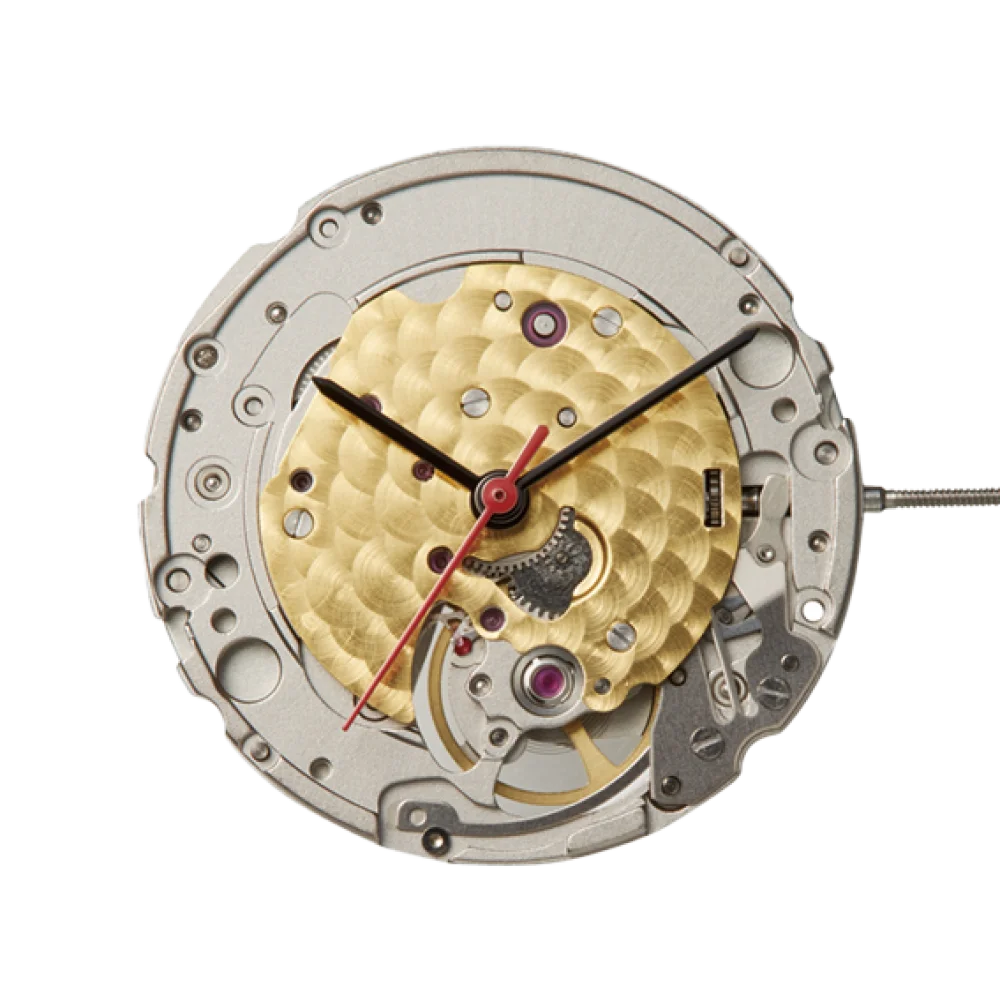

Miyota 90S5: The Open-Heart Specialist

What if you love the purity of a time-only watch but still want a glimpse of the mechanics? Miyota has an answer for that, too. The 90S5 takes the slim, high-performance base of the 9039 and adds an open heart.

This provides a window on the dial, typically between 4 and 5 o'clock, to view the beating heart of the watch: the balance wheel. It's a dash of mechanical theater without committing to a full, often illegible, skeleton dial.

Slimness Maintained

Here's the clever part. The 90S5 has the exact same 3.90mm height as the no-date 9039. This is a brilliant move by Miyota. It means a brand can use the same case for both a solid-dial and an open-heart version of a watch.

This simplifies manufacturing and design, making it easier for smaller companies to offer more variety. You get the visual appeal of the open heart without the penalty of a thicker case. It's the best of both worlds.

All the other premium specs are here as well. The 4Hz beat rate ensures the visible balance wheel is a whir of constant motion. The 42-hour power reserve and robust construction remain untouched.

A Touch of Flair

The 90S5 is for the enthusiast who appreciates the mechanical nature of their watch. It's a constant reminder of the complex machine on your wrist. It adds a dynamic element to the dial that many find captivating.

It proves that an accessible movement doesn't have to be boring. The 9000 series platform is robust enough to handle complications and aesthetic variations with ease. The 90S5 is the perfect example of adding personality without sacrificing performance.

Reference	Miyota 90S5
Type	Automatic, Open-Heart
Ligne	11 1/2'''
Height	3.90mm
Jewels	24
Frequency	28,800 vph (4Hz)
Power Reserve	Approx. 42 hours
Accuracy	-10 to +30 sec/day
Functions	Hacking, Hand-winding, 3 Hands

View on Brand

The Workhorse We Needed

Looking at these three movements together, you see the brilliance of Miyota's strategy. They've built a single, reliable, high-performance platform. From there, they can offer variations that serve almost any design purpose.

Whether a brand needs a complex flyer GMT, a slim and pure time-only dress watch, or a sporty open-heart, the 9000 series has an answer. This level of quality and versatility has fueled a golden age for independent watchmaking.

So next time you're looking at a watch and see a Miyota 9000-series caliber listed on the spec sheet, don't think of it as a budget option. Think of it as a smart choice. It's a reliable, capable, and genuinely impressive engine that punches well above its weight.
